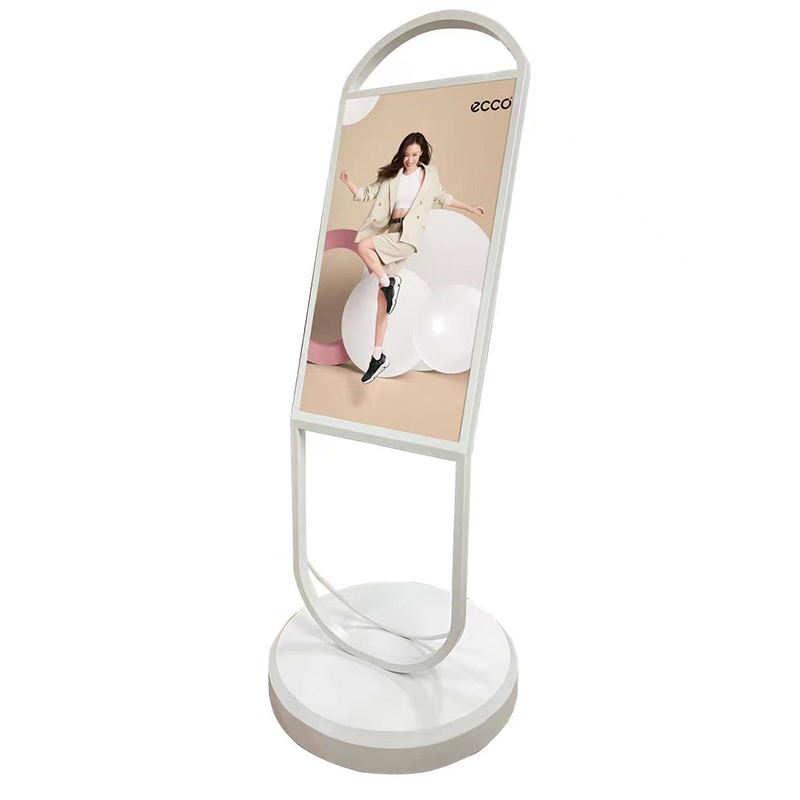

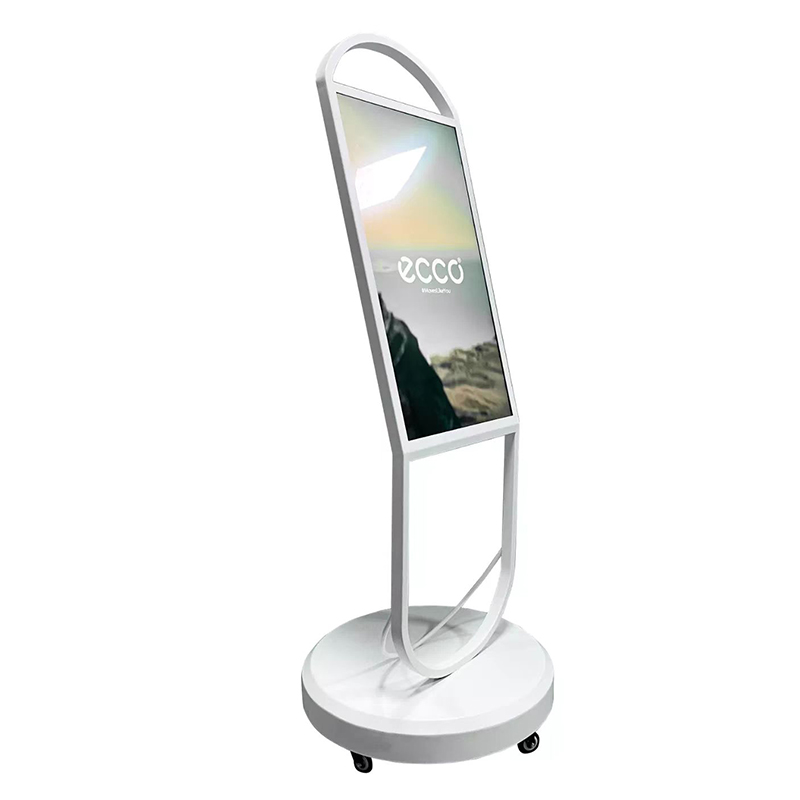

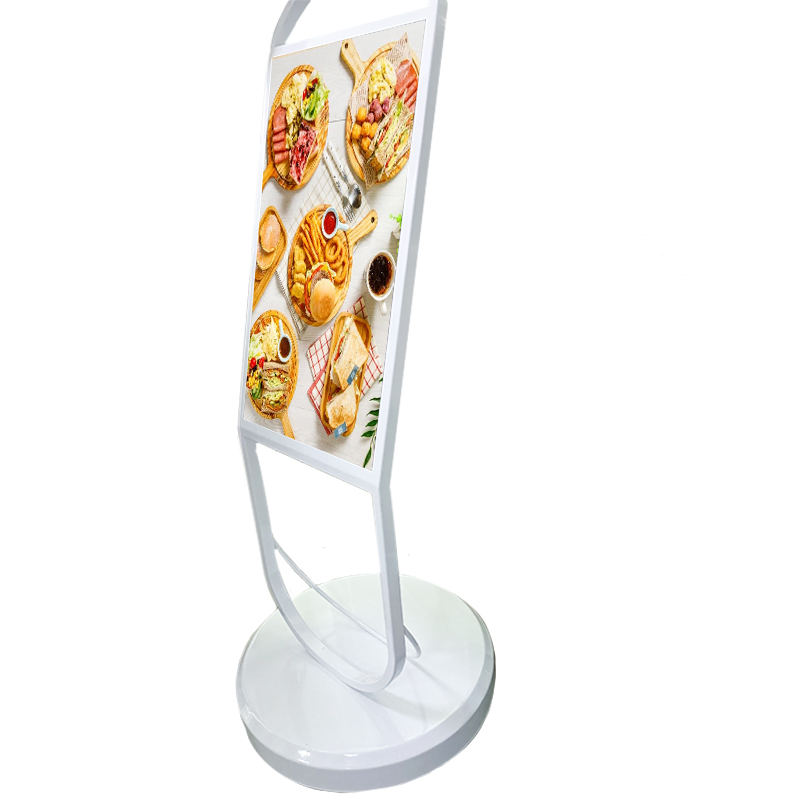

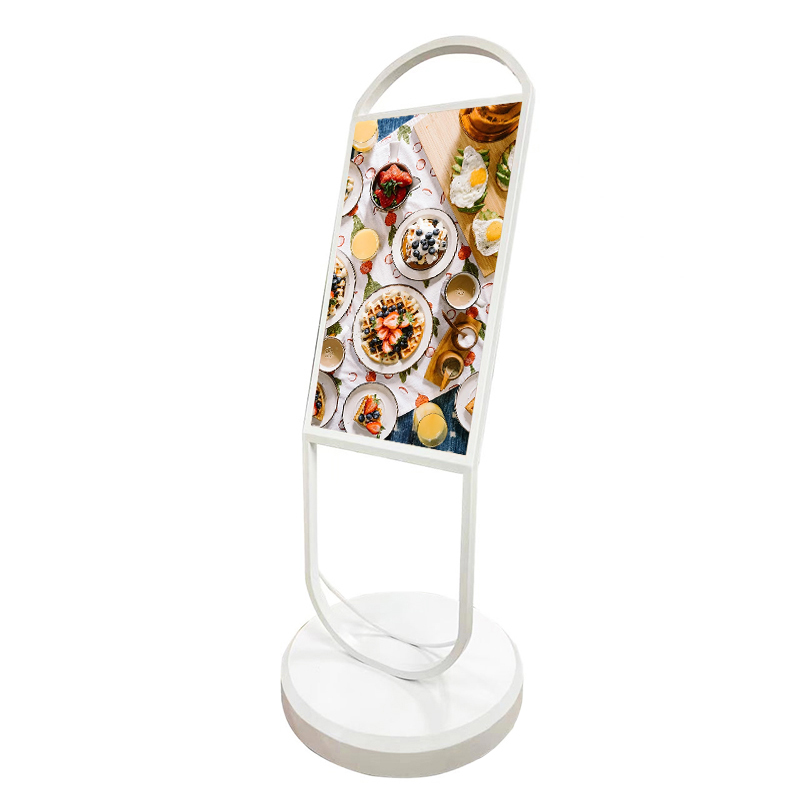

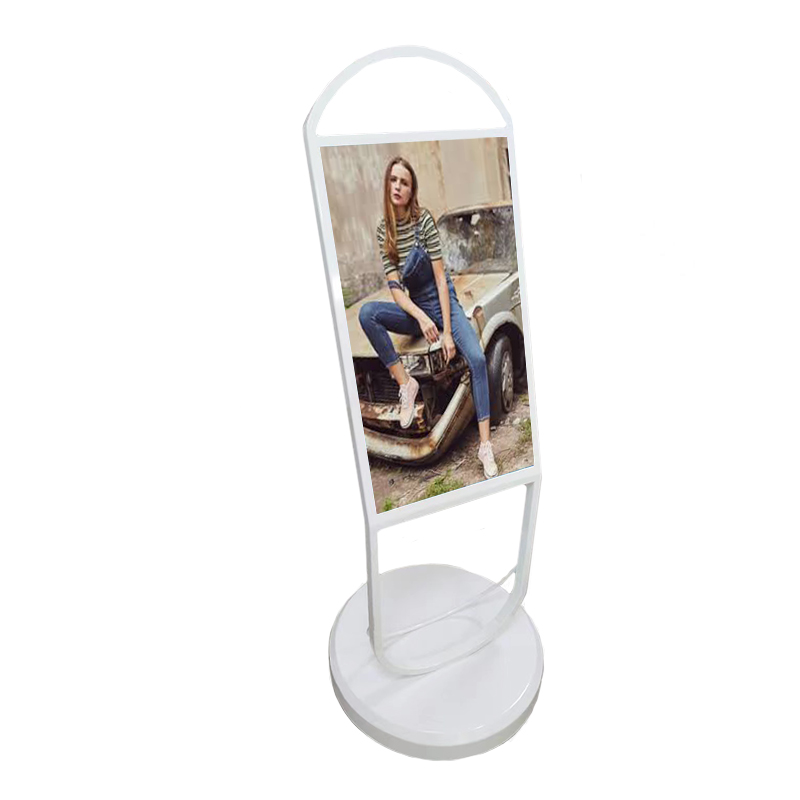

NEW ITEM Portable LCD Digital Signage with High Capacitve Battery.pdf

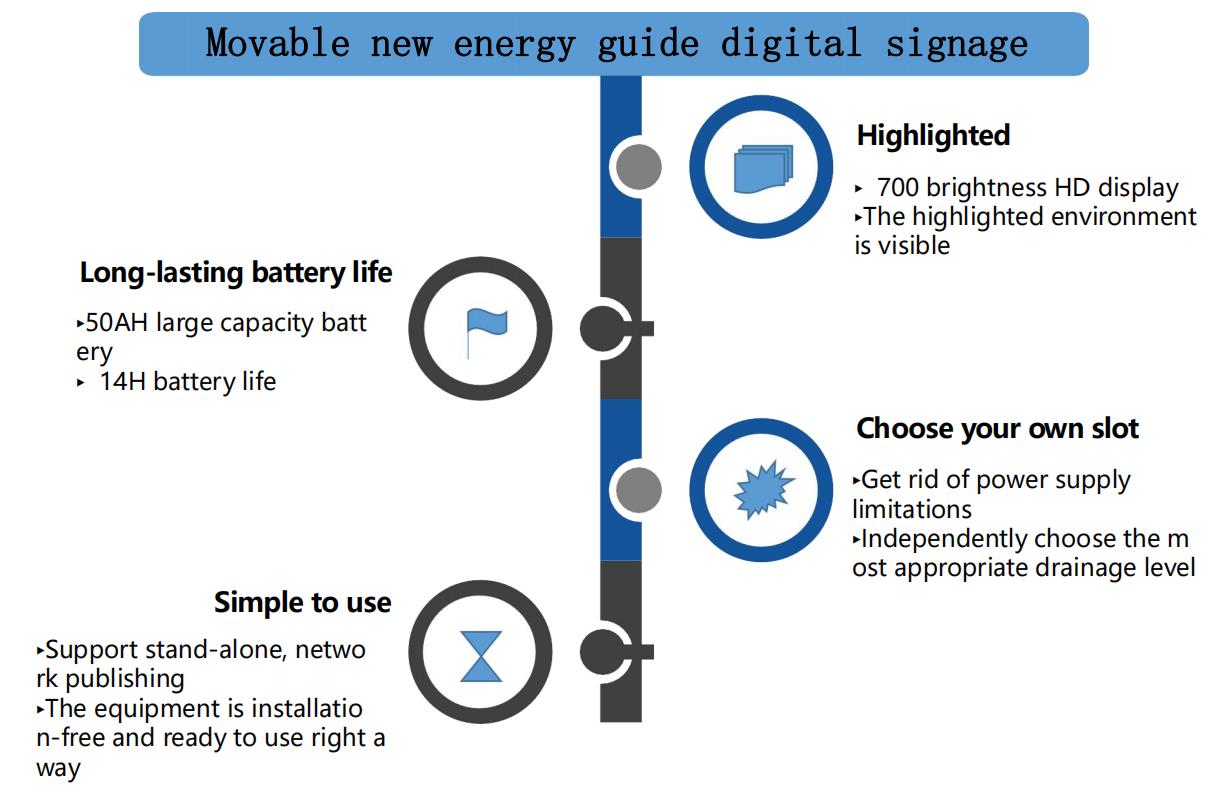

Features:
1. 700cd/㎡high brightness
2. 1080p HD resolution
3. Support 7*24 hours working

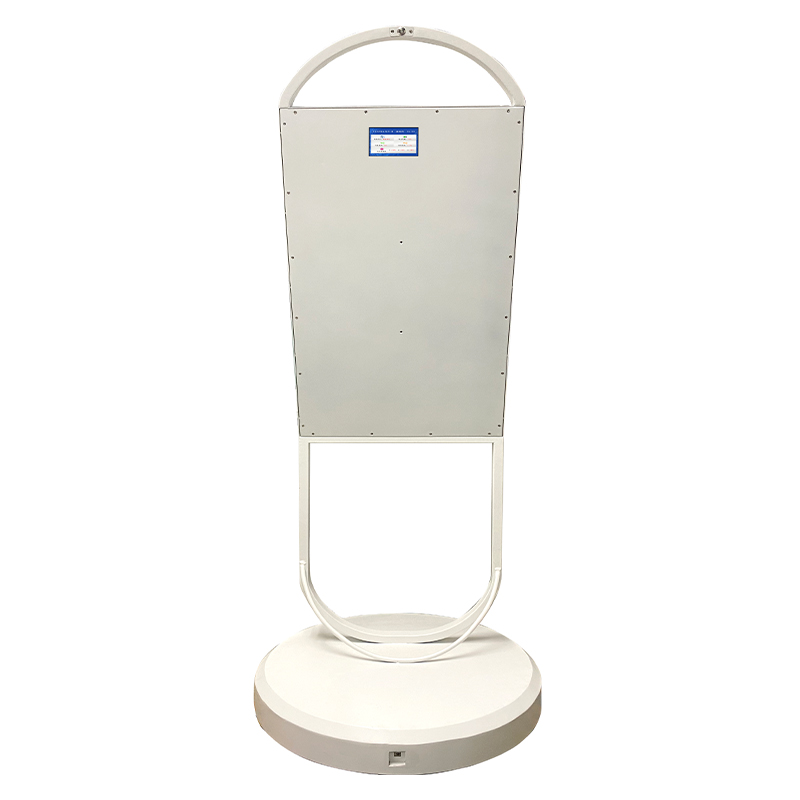

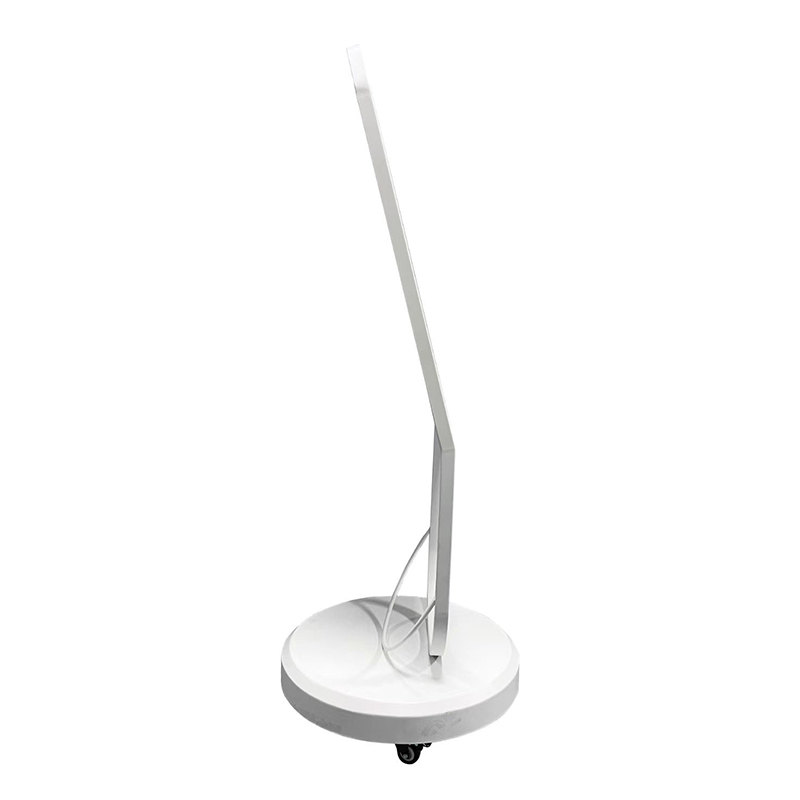

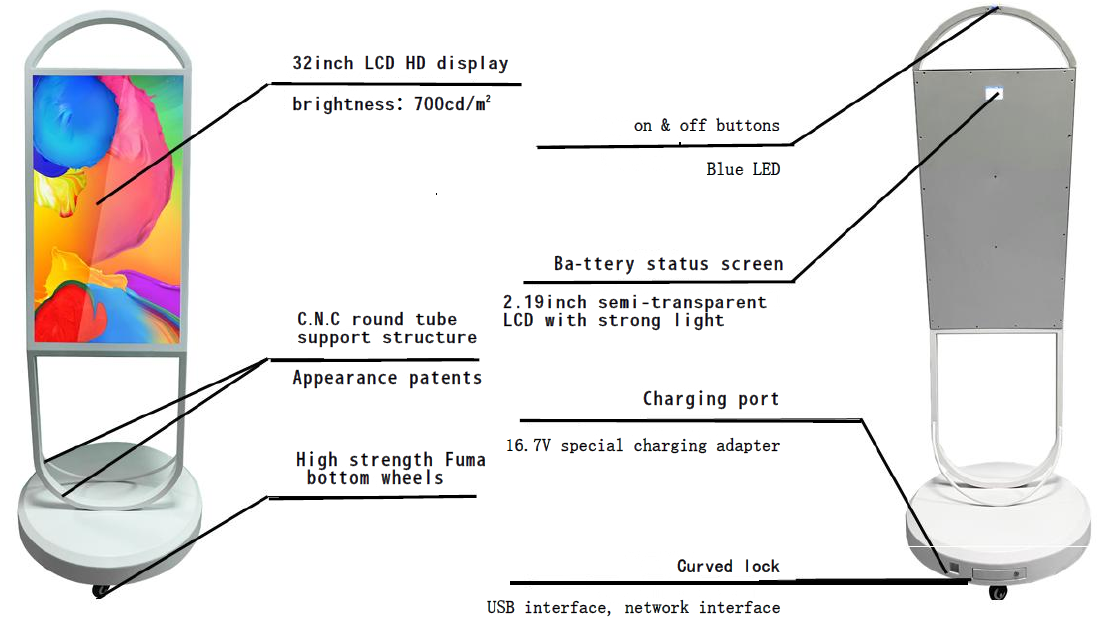

4. Unique shape, removable swivel base
5. Adopt B/S architecture, unified management of own cloud broadcast control platform
6. Support content preset in advance, timed playback
7. Support the playback of pictures, videos, live streaming media, web pages, QR codes and other elements

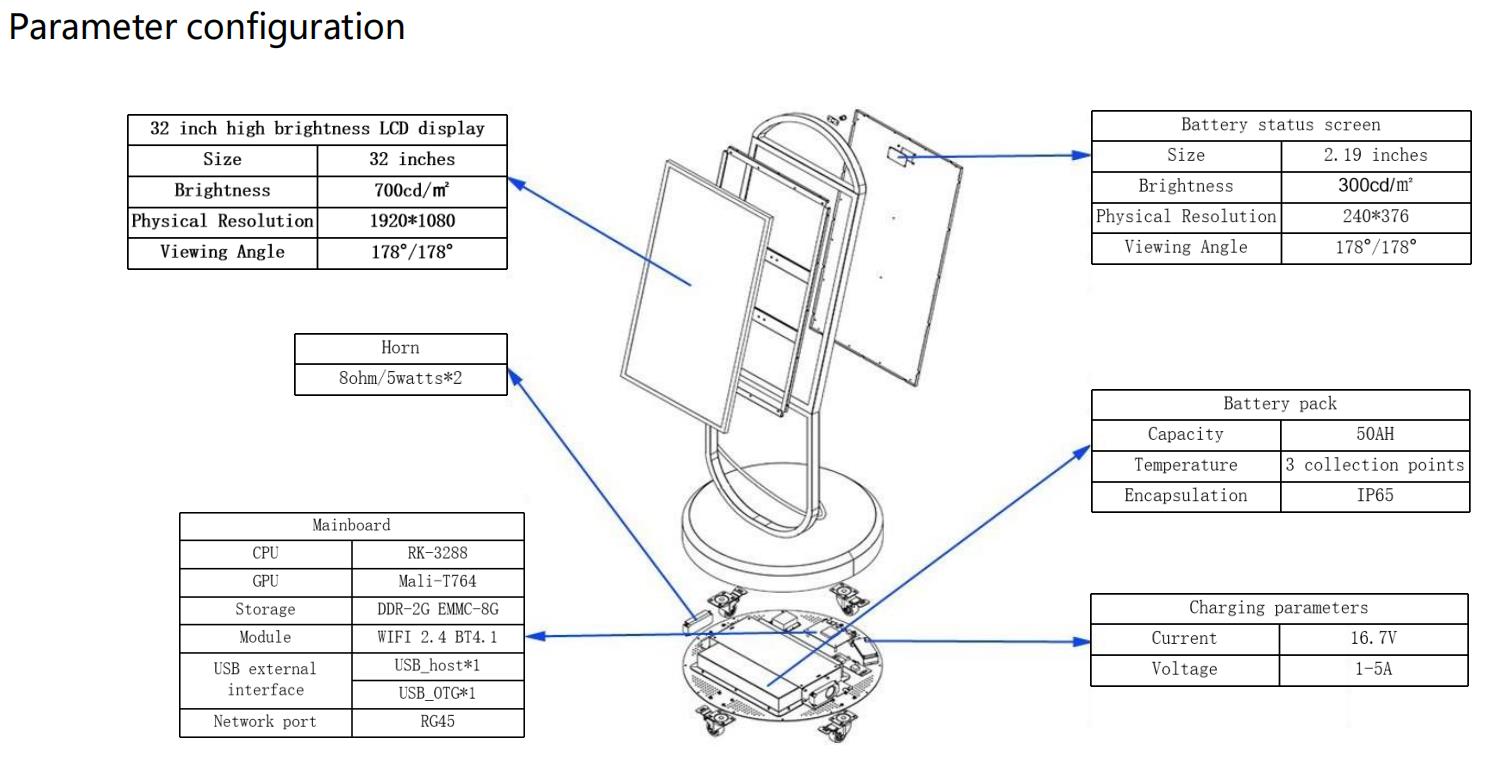

| LCD specification | ||||||
| Panel Size | 32" (16:9) TFT LCD | |||||
| Resolution | 1080*1920 | |||||
| Contrast ratio | 1200:1 | |||||
| Brightness | 700 cd/m2 | |||||
| Response time | 8ms | |||||
| Viewing angle | V:178° , H:178° | |||||
| Build in speakers | stereo sound(3W+3W) | |||||
| Using life | > 50000 hours | |||||
| Android Board | ||||||
| Processor | RK3288 | |||||
| CPU | Quad-core | |||||
| Main Frequency | 1.2 GHz | |||||
| GPU | Mali400Mp2 | |||||
| Video Output | Dual display (HDMI+LVDS) | |||||
| Memory | DDR3: 2G | |||||
| Storage | EMCC: 8G | |||||
| OS | Android 5.1/7.1 | |||||
| Fireware | Can be upgrade | |||||
| Driver | Free drive , no calibration , Plug and Play | |||||
| Power supply specs | ||||||
| NIC | Integrated 10/100/1000MAdaptive network card | |||||
| Wireless lan | 802.11a/b/g/n | |||||
| USB | 2*USB2.0 | |||||
| TF card slot | 1 | |||||
| Ethernet | 1* 10M/100M Adaptive Ethernet | |||||
| LVDS output | 1 | |||||
| HDMI output | 1（Can achieve dual display , simultaneous connection to external display devices） | |||||
| Audio output | Left and right channel output, 8R6W effect | |||||
| Earphone output | 1 | |||||
| Output power supply | 220V AC 50/60Hz | |||||
| Total power consumption | ﹤220W | |||||
| Standby power consumption | <3w | |||||
| Working environment | ||||||
| Working temperature | -20℃-70℃ | |||||
| Working humidity | 10% - 95% | |||||
| Storage temperature | 0℃-40℃ | |||||
| Storage humidity | 10% - 95% | |||||
